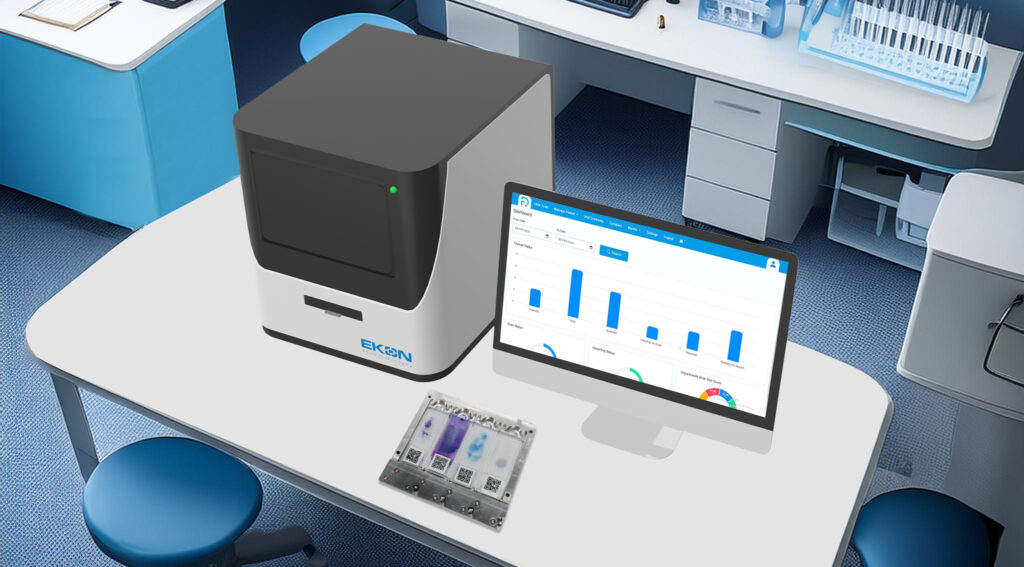

EKON Whole Slide Imaging Scanner Transforming Pathology with Precision and Speed

EKON’s full pledged team is dedicated to revolutionizing the way pathology is performed. EKON Whole Slide Image (WSI) scanners offer high-resolution, digital scanning of entire range of Microscopy slides, allowing Pathologists to view, analyze and report slides with unparalleled clarity and accuracy.



Key features of EKON

Standalone WSI device
  • In-built LIS, QR Code print, Viewing images, Reporting, Printing Reports and Telepathology modules

  • Detail Preservation: 40x magnification, allowing pathologists to observe cellular-level details.
  • Gigapixel Imaging: Each scan can produce gigapixel-sized images, ensuring no detail is missed

  • Batch Scanning: 4 slides in a batch
    • Stage 1 – Auto align the slides
    • Stage 2 – Auto focus the slides
    • Stage 3 – Auto scan progress
    • Stage 4 – Complete the scan
    • Stage 5 – Eject the slides
  • QR Code Scanning: Automatic QR Code reader can scan patient details directly from slide labels, integrating the data with a laboratory information system (LIS).
  • All cross departmental slides can put in a single run

  • High Throughput: 90 to 120 seconds scan time per slide
  • Total outcome of 4 slides would be 480 Seconds ait max includes any departments slides

  • Haematology
  • Cytology
  • Histo
  • Clinical Pathology

  • Autofocus Technology
  • Deep Zoom Image file for Pyramid view

  • Color Fidelity: Auto color calibration
  • Auto Whitebalancing
  • Noise Reduction: Sophisticated algorithms help reduce noise in the image, enhancing clarity.

Magnification
  • 40X Zoom Capability: with ROI scan for detailed examination
  • DZI and JPG: with no loss of data.
  • Data Compression: Lossless or near-lossless compression to manage the large file sizes generated by high-resolution scans.
  • Cloud Storage Integration: Local and cloud-based storage
  • Third Party Cloud and HIS or LIS integration is possible

  • In-built image viewer to view High Resolution images quickly
  • Zoom Magnification and Scale bar deta
  • Pyramid view with Deep Zoom Image
  • Image Annotation tools

  • Scan area : Fixed ( 15mm x 15mm ) or ROI scan
  • All slides or Selective slides scan

  • Medical grade anodized Aluminium
  • Medical grade Stainless Steel
  • Polycarbonate outer cover
  • Structured Electrical wiring
  • Limit sensors
  • Shock absorbers to handle vibrations during scanning

  • Cool bright field LED 5W
  • Correlated Color Temperature (CCT):5000K
  • Color Rendering Index (CRI) : 90
  • 124LuMens per Watt
  • Broadband Anti-Reflection (BBAR) coatings < 0.5%
  • Wavelength : 350-700nm
  • LED AC-DC driver (IP66 rated)

  • Equipment with Lite LIS
  • 120sec quick scanning time turn around time
  • Cross department slide scanning


Technical Specifications

Components

  • Objective Lens - UPLFLN 40x Objective
  • Scanning Time - 90 seconds
  • Sample Position - Auto Positioning
  • Focusing - AI Assisted Auto Focusing
  • Light source - Cool bright LED
  • Camera SONY IMX Digital Camera
  • QR Code Camera In built
  • Slide Tray Self locking slide tray

In-built Computer

  • Storage - 256 GB SSD and 4 TB

Calibration

  • White balancing - Auto
  • Positioning - Auto
  • QC Check - Auto check for every scan

Power and Temperature

  • Input Power - AC 110 240 Volts
  • Operating temp. - Upto 50°C

Warranty

  • Warranty - 1 year comprehensive warranty
